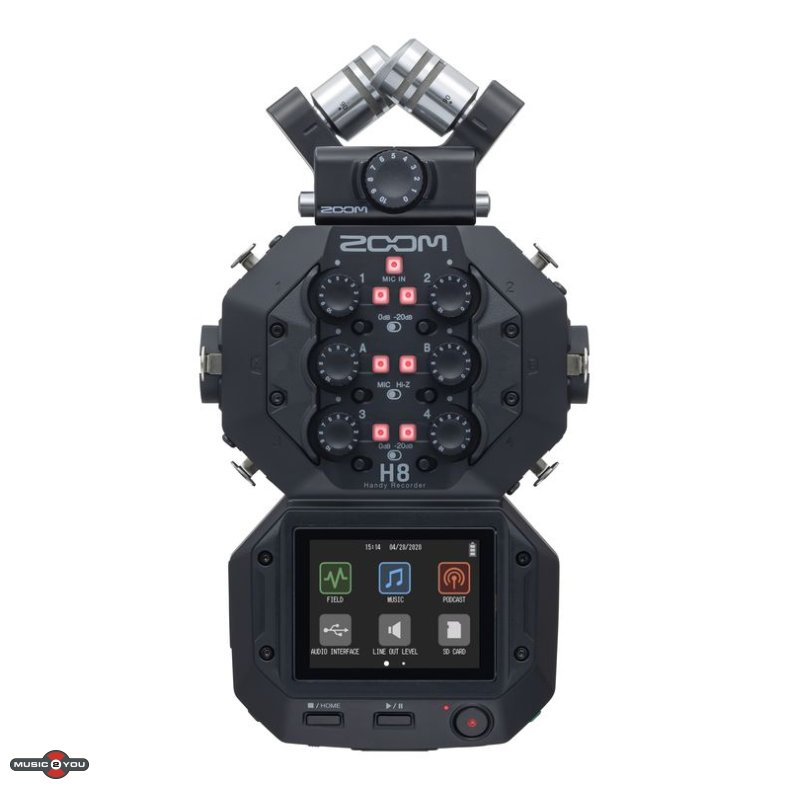

Zoom H8 Håndholdt Recorder

Håndholdt optager med mange muligheder.

Med sine tre "App modes" til "podcasting", "music production" eller "location recording" kan Zoom H8 hurtigt optage op til 10 kanalers lyd. De forskellige "App modes" indstiller Zoom H8 til lige netop det du skal optage. Samtidig er den kompatibel med en række mikrofon kapsler (medfølger ikke) så du er sikker på at have den rigtige mikrofon til opgaven.

Ligesom andre produkter fra Zoom H-serien kan man holde optageren i hånden, montere den på et mikrofonstativ, trefod eller montere den på et kamera. Med sine mange funktioner i en relativ lille enhed, er H8 klar til at møde de skiftende krav fra podcastere, musik producere, musikere og mange andre. Det medfølgede software, Cubase LE og WaveLab Cast, giver dig værktøjerne til at redigere, finpudse, exportere og uploade dine projekter.

Features:

• Customized applications for field recording, music and podcasting
• 3 distinct interfaces for field recording, music and podcasting
• Interchangeable input capsules
• 12-track simultaneous recording
• Four mic inputs and two XLR/TRS combo connectors
• Gain control knobs and -20dB pads for each input
• Supplied XYH-6 X/Y capsule provides secondary input via a stereo ⅛” Mic/Line In mini phone jack
• Phantom power for four main XLR inputs: +12/+24/+48V
• Large color LCD touchscreen display
• Records directly to SD, SDHC and SDXC cards up to 512GB
• Up to 24-bit /96kHz audio in BWF-compliant WAV or a variety of MP3 formats
• Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
• Built-in effects, including low-cut filtering, compression, and limiting
• Multichannel and stereo USB audio interface for PC/Mac/iPad

Specifikationer:

• NUMBER OF INPUT CHANNELS: 8 (XY mic capsule, 1-4, A, B)
• NUMBER OF OUTPUT CHANNELS: 2 (stereo headphone and stereo line)
• Connectors
  • MIC IN: ZOOM mic connector
  • INPUT 1-4: XLR jacks (2: HOT)
  • INPUT A/B: XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot)
  • USB: USB Micro-B(audio interface, mass storage and Guitar Lab connection functions)Note: Use a USB cable that supports data transfer.Operation using USB bus power is possible.
  • REMOTE: ZOOM BTA-1 or other dedicated wireless adapter
  • LINE OUT: 3.5 mm stereo mini
  • PHONE OUT: 3.5 mm stereo mini
  • PHANTOM POWER: +24 V/+48 V (independent ON/OFF for INPUTS 1–4, A and B)
• Recorder
  • RECORDING MEDIA: Cards that support SD/SDHC/SDXC specifications
  • FORMATS    WAV: 44.1/48/96 kHz, 16/24-bit, mono/stereoMP3: 128, 192, 320 kbps
  • MAXIMUM SIMULTANEOUS RECORDINGTRACKS: 12 (MIC IN, backup recording, 1-4, A, B, and LR)
• Audio interface
  • MULTITRACK MODE: 44.1/48/96 kHz, 16/24-bit, 12-in/2-out
  • STEREO MIX MODE: 44.1/48 kHz, 24-bit, 2-in/2-out
  • TUNER: Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD
  • BUILT-IN SPEAKER: 400 mW 8Ω mono speaker
  • DISPLAY: 2.4" (320×240) full-color touchscreen LCD
• POWER:
  • 4 AA batteries (alkaline, NiMH or lithium)AC adapter (ZOOM AD-17): DC 5 V/1AUSB bus power
  • Using XY mic, 44.1 kHz/24-bit (stereo × 1): about 15:00
  • The above values are approximate.
  • Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
• EXTERNAL DIMENSIONS
  • H8: 116.4 mm (W) × 163.3 mm (D) × 48.6 mm (H)
  • XYH-6: 78.9 mm (W) × 60.2 mm (D) × 45.2 mm (H)
• WEIGHT:
  • H8: 354 g
  • XYH-6: 130 g
