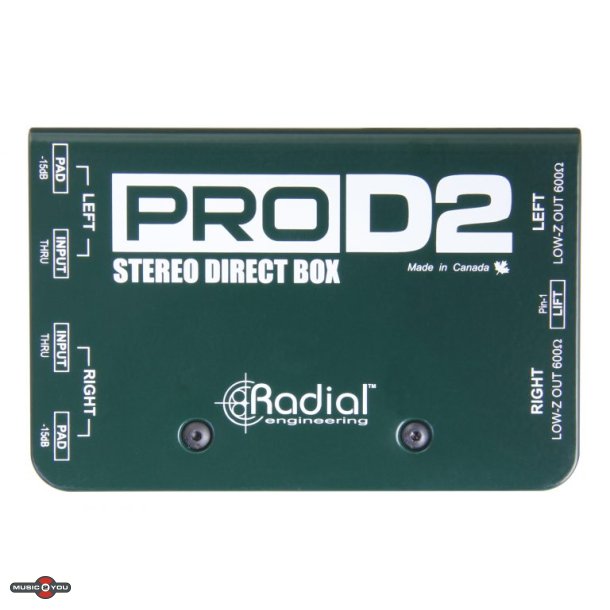

Radial Pro D2 Passive Stereo DI Box

ProD2 er en 2-kanals passiv DI boks designet til at forbinde stereokeyboards eller instrumenter med højt output til et PA-system eller hjemmestudiet uden støj eller forvrængning.

Specifications:

• Audio circuit type: Passive, transformer based
• Transformer: Eclipse ET-DB2, 12:1 ratio
• Number of channels: 2
• Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)
• Dynamic range: 128dB
• Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB
• Phase Deviation: 1° @ 100Hz; 8° @ 20Hz
• Input Impedance: 140k Ohms, unbalanced
• Output Impedance: 150 Ohms, balanced
• Maximum Input: +18dB @ 20Hz

Features:

• Input pad, 180° polarity reverse, Ground lift
• Input Connectors: 1/4"
• Output Connectors: XLR, 1/4" thru

General:

• Construction: 14 gauge steel chassis & outer shell
• Size (L x W x D): 127mm x 84.1mm x 45.5mm
• Weight: 0,54kg
• Shipping size (L x W x D): 165mm x 102mm x 76mm
• Shipping weight: 0,61 kg
• Power: Passive, no power required
• Conditions: For use in dry locations only between 5°C and 40°C
