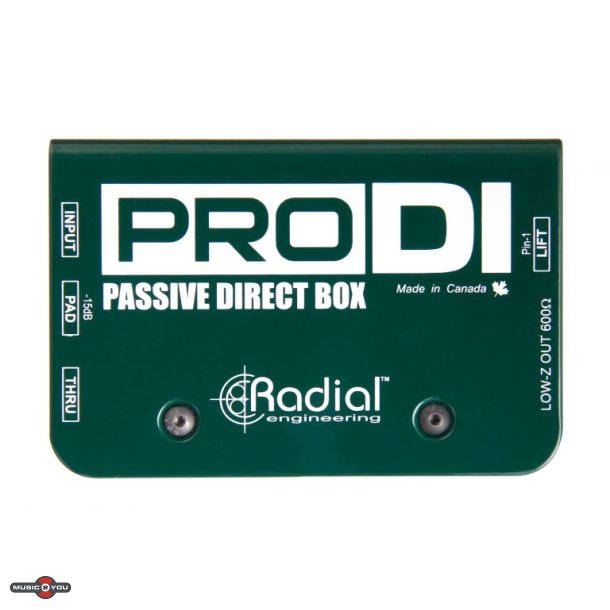

Radial Pro Di Passive Mono DI Box

ProDI er en passiv DI boks designet til brug på scenen eller i hjemmestudiet med evnen til at håndtere høje outputinstrumenter uden forvrængning og en transformer-isoleret output for at eliminere støj fra jordsløjfer.

Specifications :

• Audio circuit type: Passive, transformer based
• Transformer: Eclipse ET-DB2, 12:1 ratio
• Number of channels: Single channel (mono)
• Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)
• Dynamic range: 128dB
• Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB
• Phase Deviation: 1° @ 100Hz; 8° @ 20Hz
• Input Impedance: 140k Ohms, unbalanced
• Output Impedance: 150 Ohms, balanced
• Maximum Input: +18dB @ 20Hz

Features:

• Input pad, Ground lift
• Input Connectors: 1/4" in & thru
• Output Connectors: XLR-M out

General:

• Construction: 14 gauge steel chassis & outer shell
• Size (L x W x D): 108 x 70 x 44mm
• Weight:    0.54kg
• Shipping size (L x W x D): 165 x 76 x 102mm
• Shipping weight: 0.61kg
• Power: Passive, no power required
• Conditions: For use in dry locations only between 5°C and 40°C
