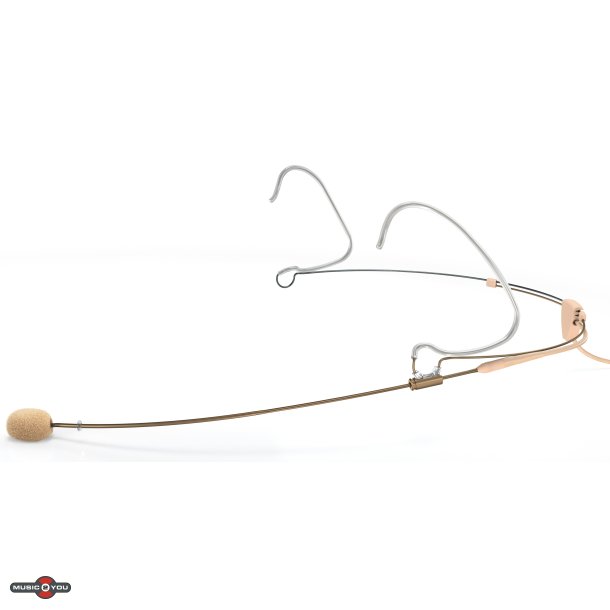

DPA 4488-DC-R-F00 Headset / Hovedbøjle-mikrofon - Beige

6.075,00 DKK

DPA Microphones

DPA 4488 CORE Cardioid headset med MicroDot stik - Beige.

Product picture

Beskrivelse

DPA 4488-DC-R-F00 Headset med MicroDot stik - Farve beige

4488 CORE Directional Headset-mikrofonen kombinerer DPA's anerkendte 5 mm kapsler med CORE by DPA-teknologien og det Red Dot-prisvindende headset.

Disse er de mest avancerede headsets – sikre, holdbare og fleksible – til segmenter som: Teater, Broadcast, Kirkebrug og Konferencer.

Specifikationer:

  • Directional pattern: Cardioid
  • Principle of operation: Pressure gradient
  • Frequency response: 20 Hz - 20 kHz
  • Effective frequency range, ±2 dB, Near field 2-3 cm: 100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz)
  • Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
  • Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peak
  • Dynamic range - CORE: Typ. 111 dB
  • Max. SPL, THD 10%: 144 dB SPL peak
  • Rated output impedance: 30 - 40 Ω
  • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
  • Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter / With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
  • Connector: MicroDot
  • Color: Beige
  • Weight: 12 g incl. Cable and MicroDot connector
  • Microphone diameter: 5.4 mm
  • Cable length: 1.3 m
  • Cable diameter: 1.6 mm
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
